Alcatel 2004A Rotary Vane Vacuum Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Alcatel
- MPN
- 2004A
- SKU
- 1087
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Specify primary input voltage when ordering
Intake port 0.927" O.D. pipe for hose connection or KF25 flange

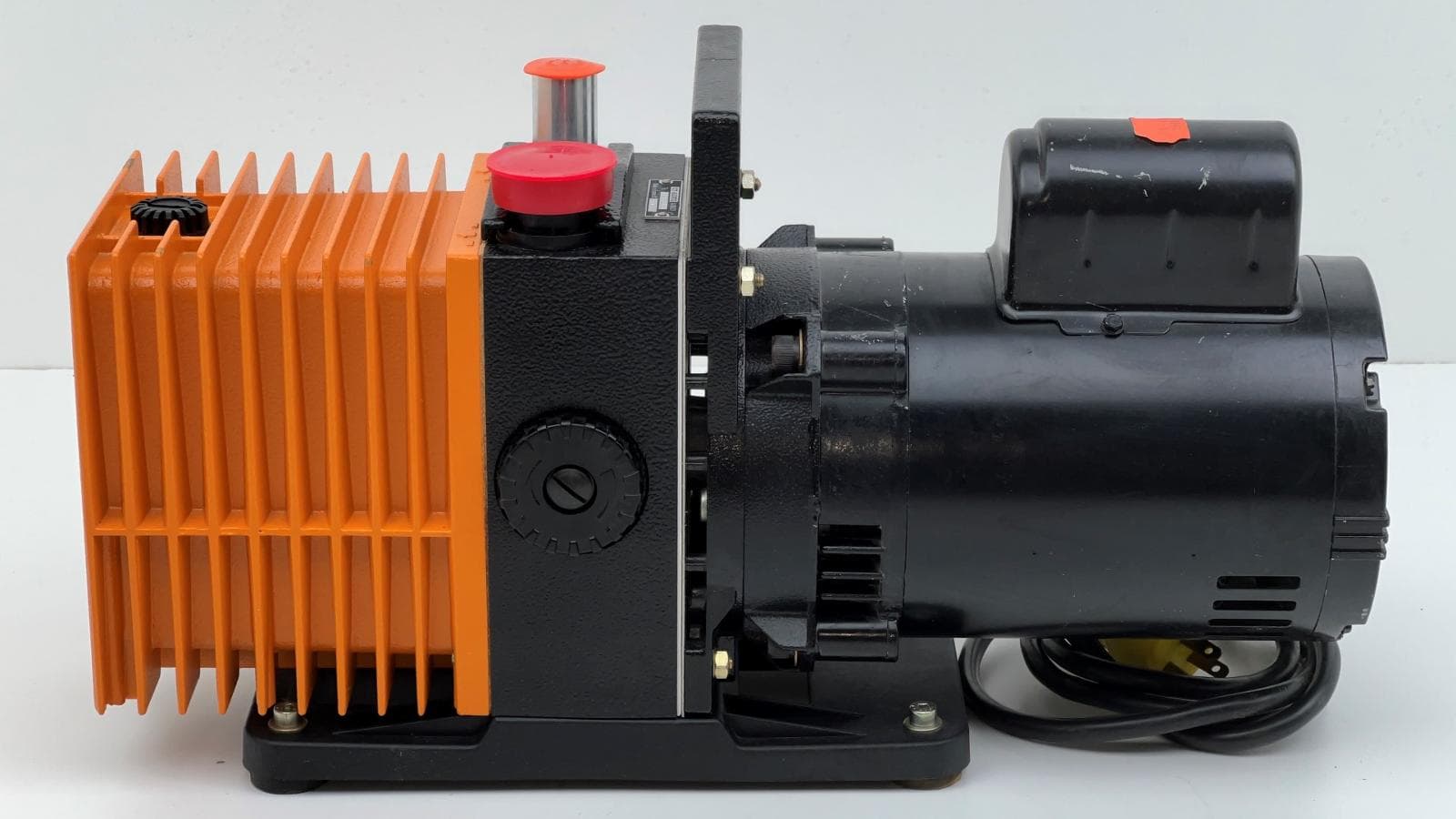

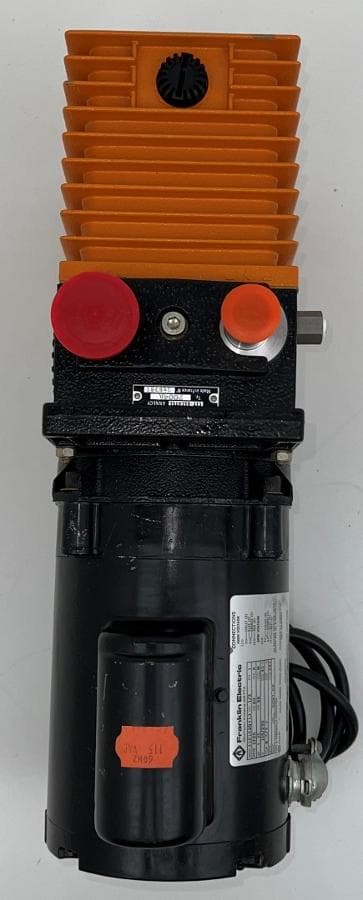

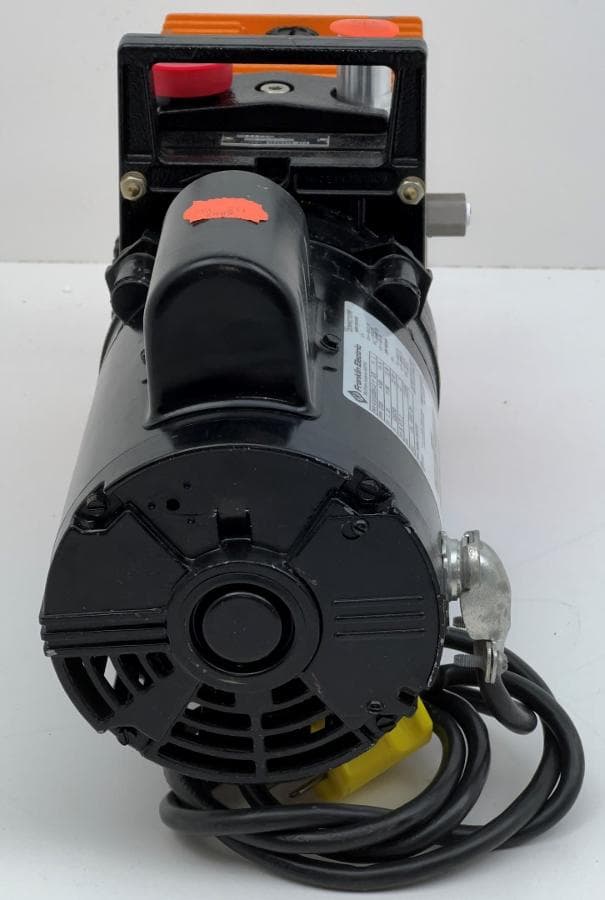

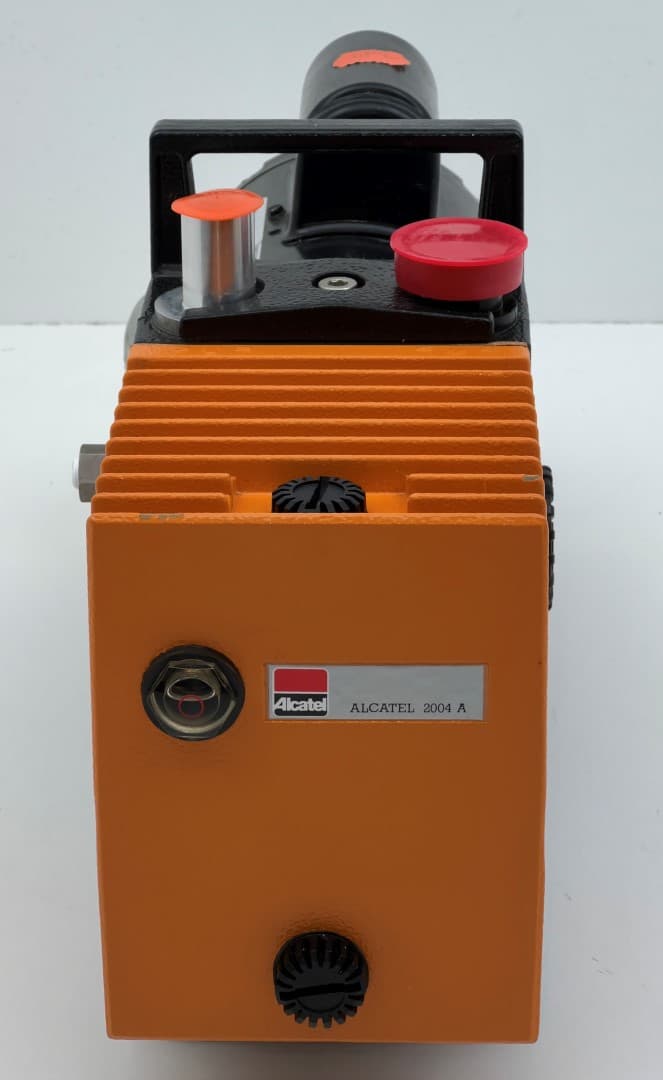

Pump photographed is tested and ready to ship
Technical specifications
| Pumping Speed | 4.2 CFM (118.7 l/m) |
| Ultimate Pressure | 0.50E-2(En) torr (0.67E-2 mbar) |
| Inlet Flange | Other 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Normal |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | 0.33 HP |
| Rotational Speed | 1,725 RPM |
| Oil Type | Hydrocarbon |
| Power Requirements | 115/ 230 V 6.4 A 3.2 A(2) 60 Hz 1 Phase |
| Weight | 54 lb (25 kg) |
Exterior Dimensions
| Width | 6.300 in (16.0 cm) |
| Depth | 18.000 in (45.7 cm) |
| Height | 10.000 in (25.4 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
