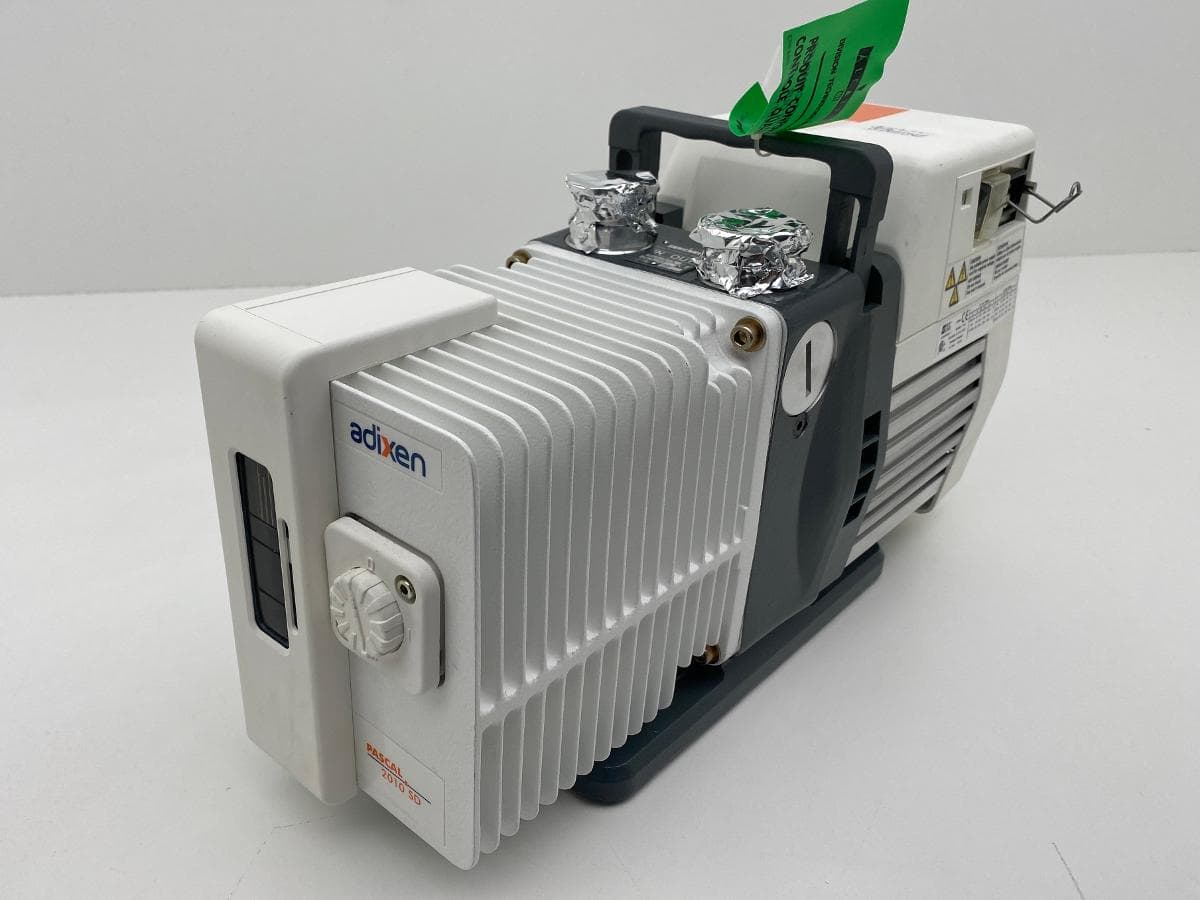

Alcatel 2010 SD Rotary Vane Vacuum Pump 6.8 CFM
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Alcatel
- MPN
- 2010 SD Pascal
- SKU
- 163508
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Single phase 115/230VAC 50/60 Hz
Filled with Edwards Ultra Grade 19 oil
Technical specifications
| Pumping Speed | 6.8 CFM (192.2 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |

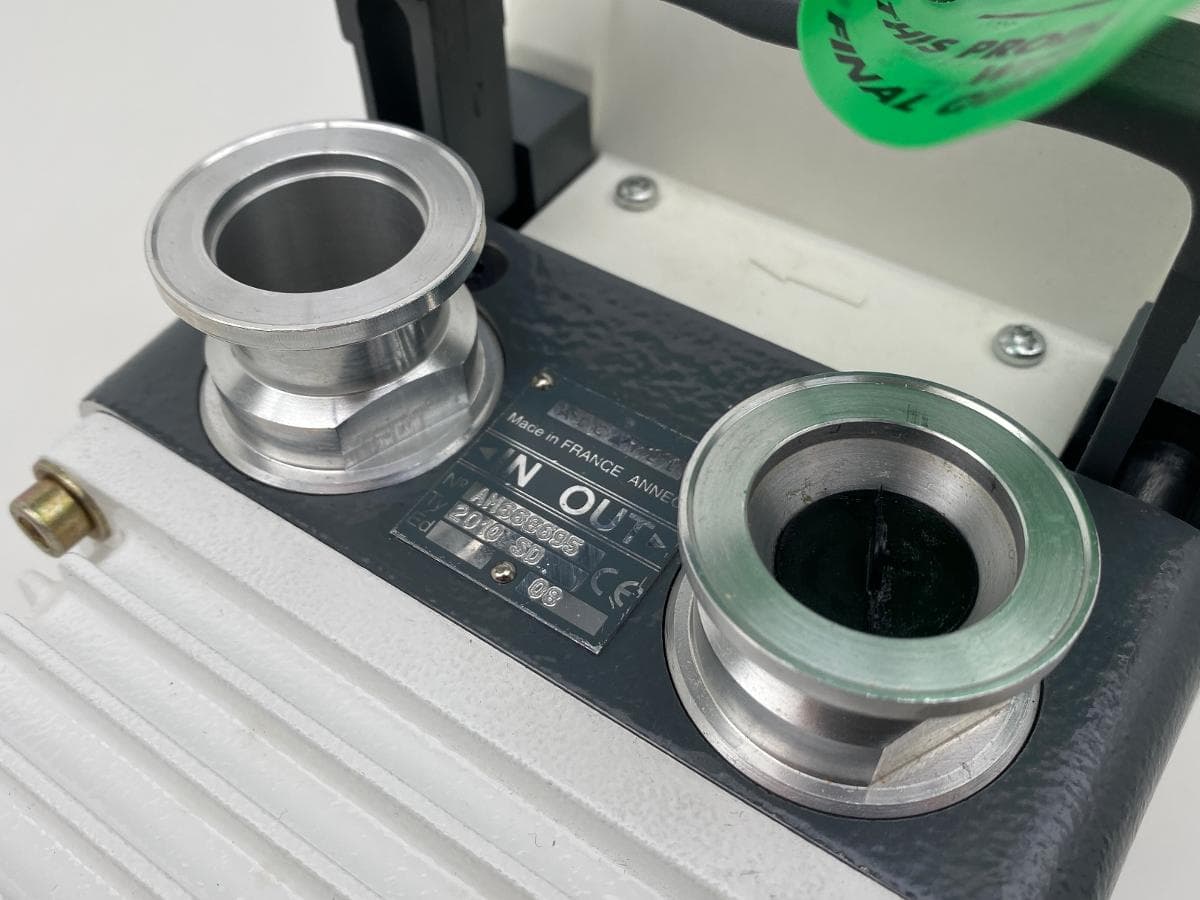

| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Normal |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Oil Type | Hydrocarbon |

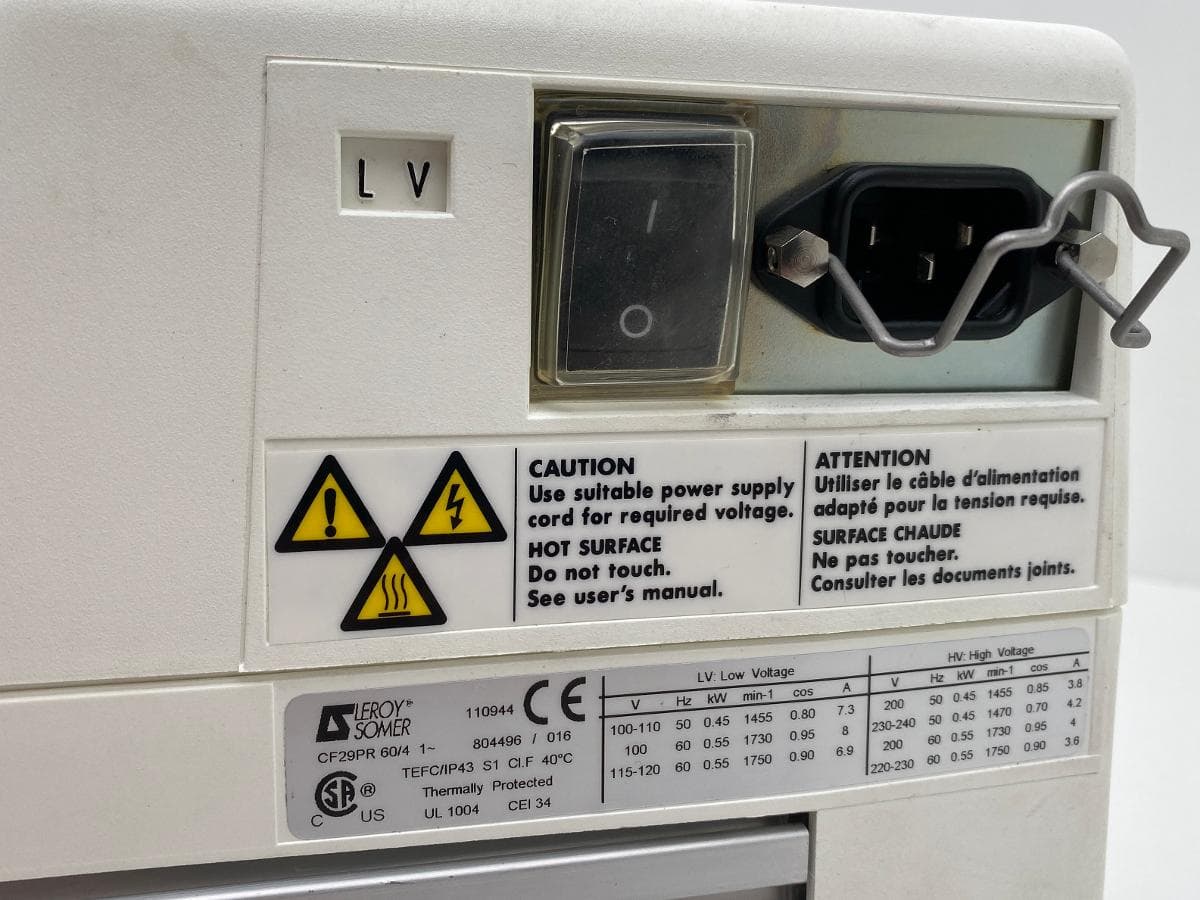

| Power Requirements | 115/ 230 V 4.0 A 2.0 A(2) 50/60 Hz 1 Phase |
| CE Marked | YES |
| Weight | 54 lb (24 kg) |
Exterior Dimensions
| Width | 6.500 in (16.5 cm) |
| Depth | 17.500 in (44.5 cm) |
| Height | 9.000 in (22.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
