You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.
Alcatel 2012A Rotary Vane Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Alcatel
- MPN
- 2012A
- SKU
- 110180
- Availability
- 3 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Specify primary input voltage when ordering
Intake port 1.1" O.D. pipe for hose connection or KF25 flange

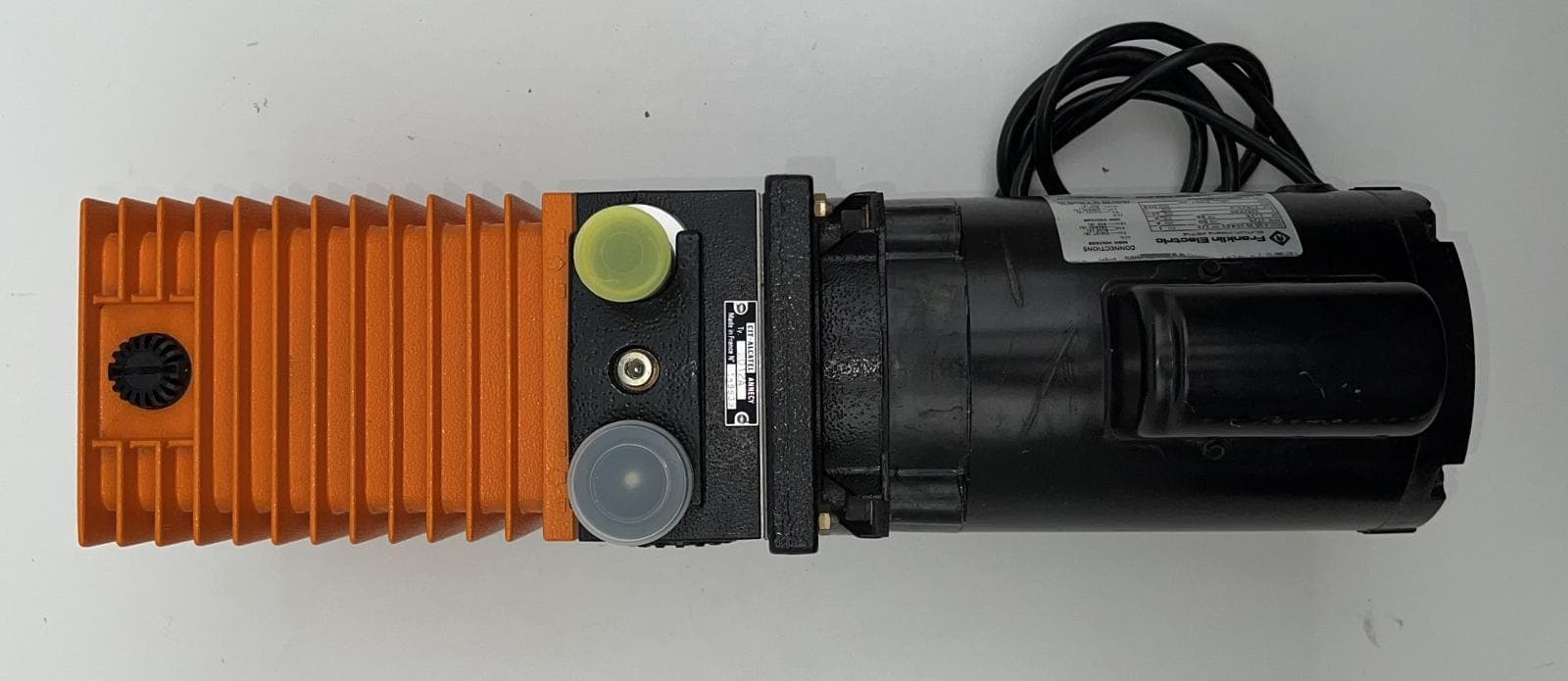

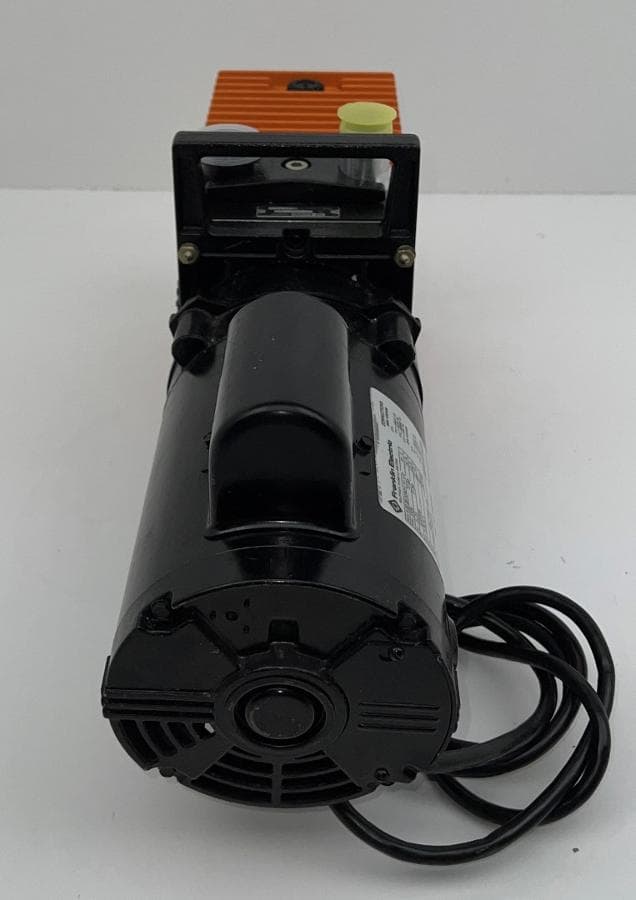

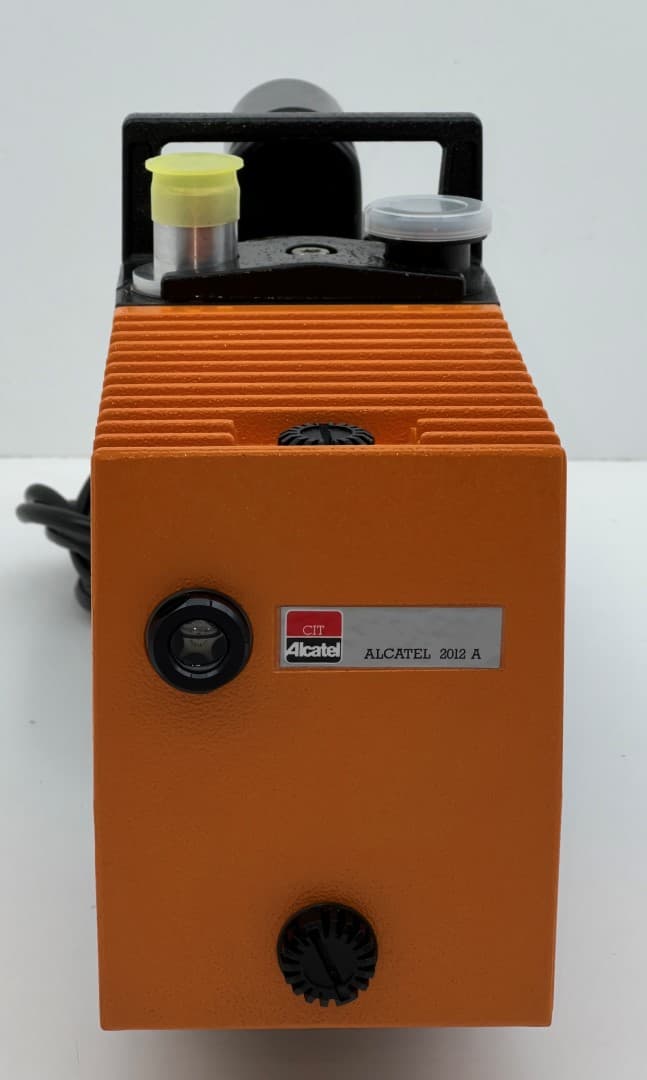

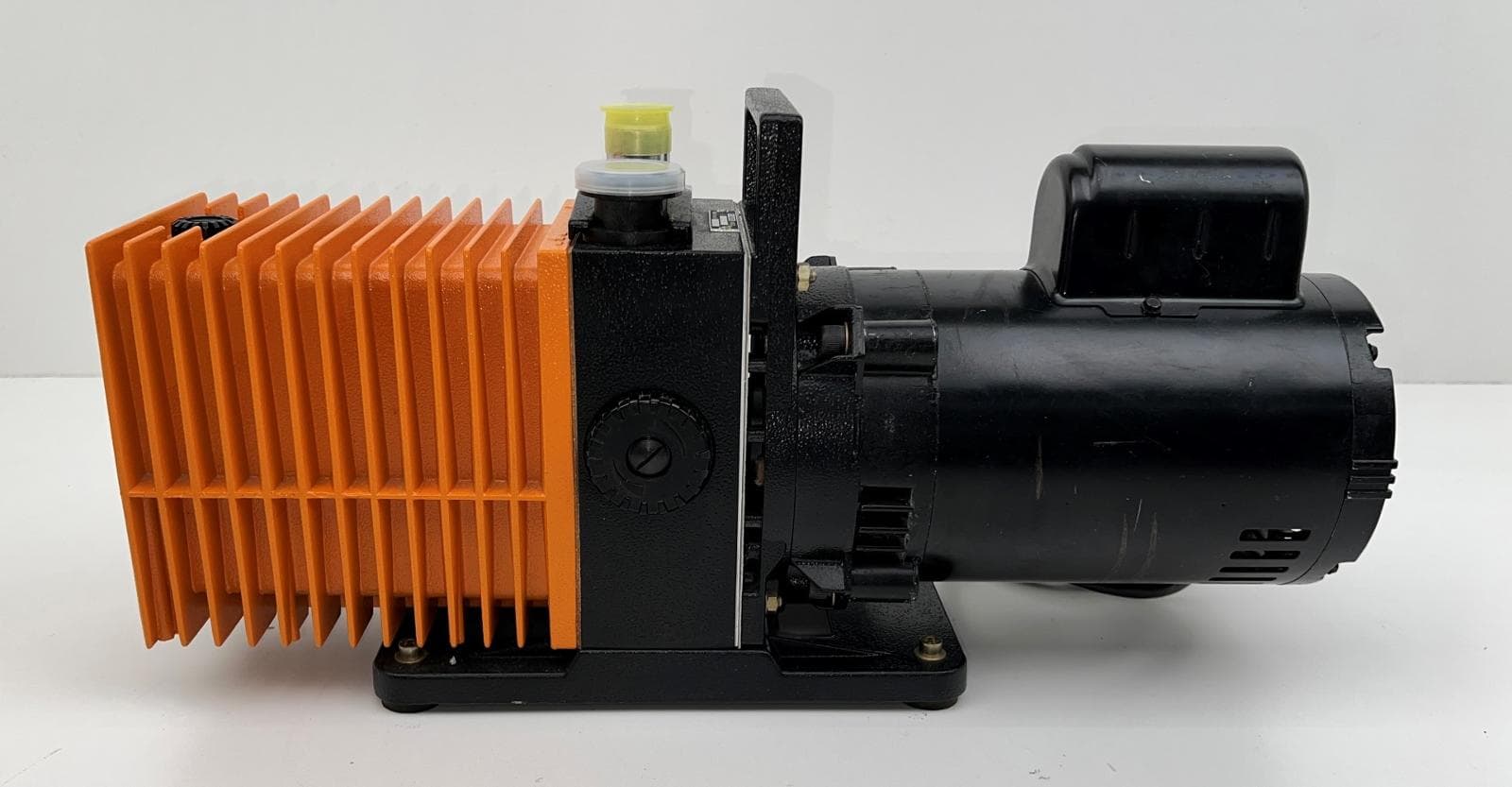

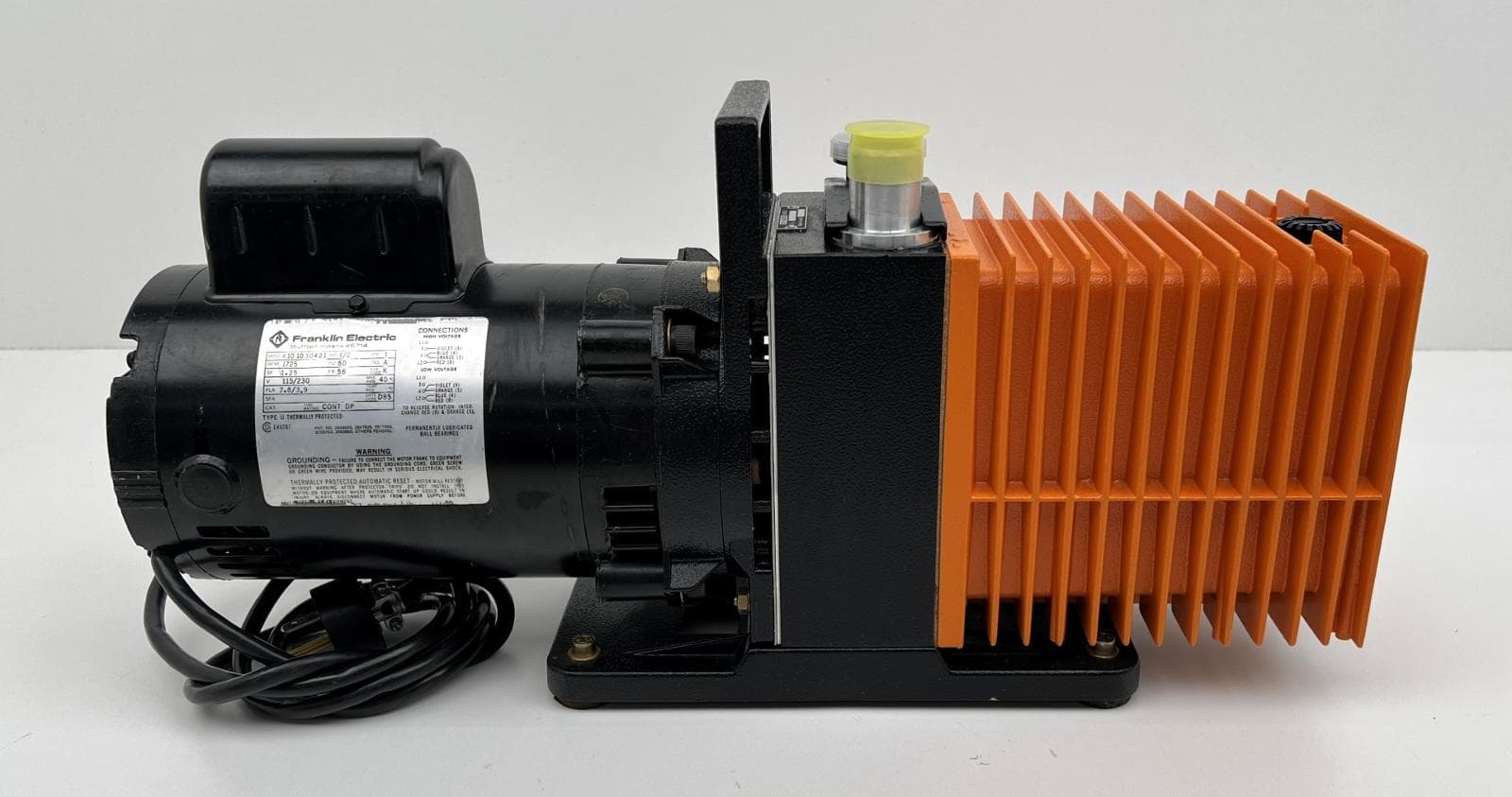

Pump photographed is tested and ready to ship
Technical specifications
| Pumping Speed | 11.0 CFM (310.8 l/m) |
| Ultimate Pressure | 0.50E-2(En) torr (0.67E-2 mbar) |
| Inlet Flange | Other 27.9 mm (1.100 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Normal |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | 0.5 HP |
| Rotational Speed | 1,725 RPM |
| Oil Type | Hydrocarbon |
| Oil Capacity | Minimum: 0.80 L (0.85 qt, 0.18 Br gal) |
| Power Requirements | 115/ 230 V 7.8 A 3.9 A(2) 60 Hz 1 Phase |
| Weight | 52 lb (24 kg) |
Exterior Dimensions
| Width | 21.000 in (53.3 cm) |
| Depth | 6.000 in (15.2 cm) |
| Height | 10.000 in (25.4 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
Documents
- nameplate.JPEGJPEG
