Leybold Oerlikon D25BCS Rotary Vane Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Leybold
- MPN
- D25BCS
- SKU
- 1923
- Availability
- 4 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

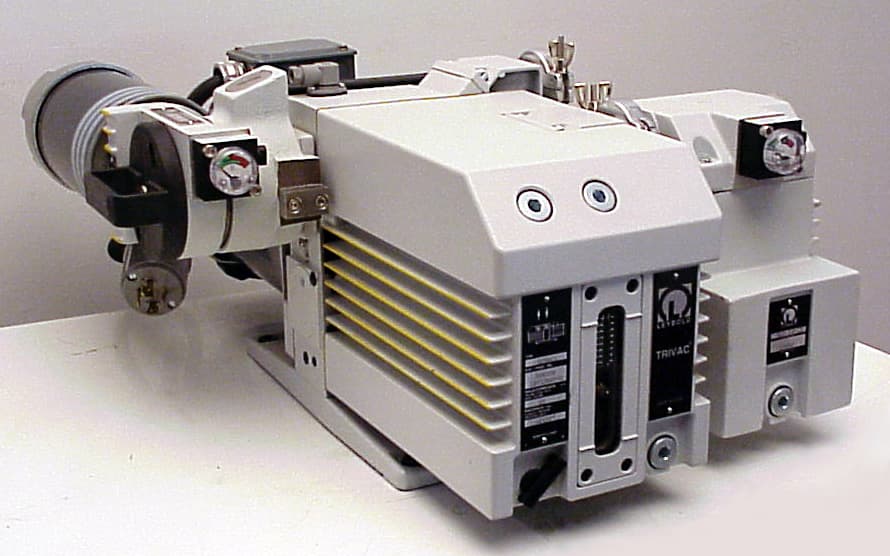

ARS 16-25 exhaust filter with oil return line and CFS 16-25 chemical filter with safety isolation valve pictured.
*Filtration systems shown are not included
This pump is available with or without described filtration systems; inquire about availability and pricing
Technical specifications
| Pumping Speed | 20.9 CFM (590.6 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |
| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | 1.5 HP |
| Rotational Speed | 1,725 RPM |
| Oil Capacity | Minimum: 0.60 L (0.63 qt, 0.13 Br gal) Maximum: 1.40 L (1.48 qt, 0.31 Br gal) |
| Power Requirements | 230/460 V 4.8 A 2.4 A(2) 60 Hz 3 Phase |
| Weight | 106 lb (48 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 24.000 in (61.0 cm) |
| Height | 11.000 in (27.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
