You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

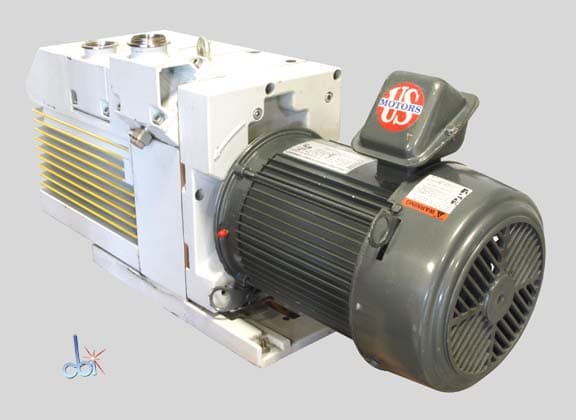

Leybold Oerlikon D40BCS Rotary Vane Pump

Quoted on requestWorking & warranted

Condition: Used
Brand: Leybold
MPN: D40BCS
SKU: 1104
Availability: 19 in stock

Ask a question?

Item description

This pump available with or without filtration systems;

Inquire about availability and pricing

Pump is available in 200-220/380VAC 50Hz 3 phase configuration, inquire when ordering

Nominal Displacement: 32.5 CFM

Ultimate partial pressure with gas ballast closed: Ultimate total pressure with gas ballast open: <3.8E-3

Water vapor tolerance: 30 Torr

Oil capacity: min = 1.8 qt, max = 2.7 qt

Pump rotational speed: 1755 rpm

Specifications

Pumping Speed: 32.5 CFM (918.4 l/m)
Ultimate Pressure: 0.15E-2(En) torr (0.20E-2 mbar)
Inlet Flange: KF 40.0 mm (1.575 in)
Exhaust Flange: KF 40.0 mm (1.575 in)
Two-Stage: YES
Gas Ballast: Yes
Direct Drive: Yes
Motor Horsepower: 3 HP
Power Requirements: 230/460 V 10.0 A 5.0 A(2) 60 Hz 3 Phase
Weight: 200 lb (91 kg)

Exterior Dimensions

Width: 16.000 in (40.6 cm)
Depth: 30.000 in (76.2 cm)
Height: 13.000 in (33.0 cm)

Working & Warranted
Working & Warranted means the item has been inspected by Capovani engineers to confirm functional condition and is sold with a 90 day warranty.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Secure, flexible payment
Card and invoice payments through Stripe, plus purchase orders and offline payment options.
