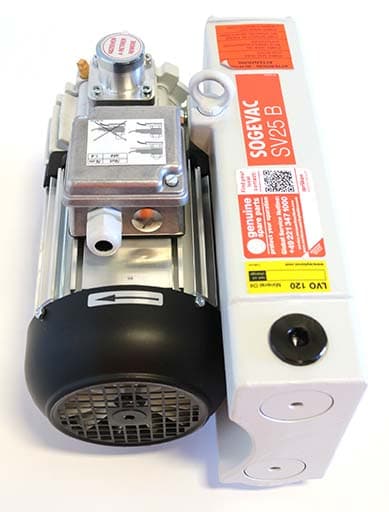

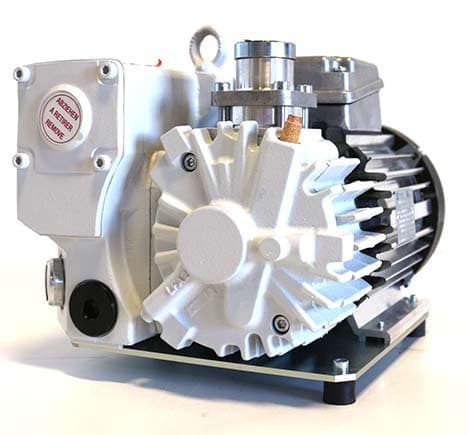

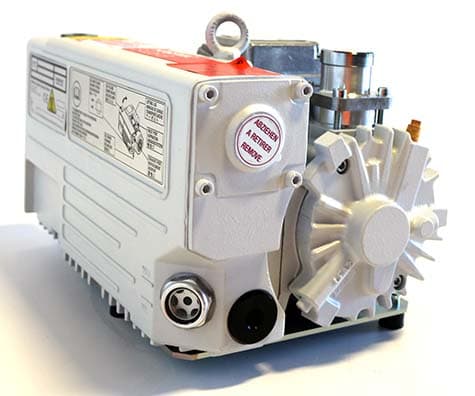

Oerlikon Leybold Sogevac SV25 B Rotary Vane Vacuum Pump
$2,850.0030 day return
- Condition
- New (open box) See details
- Brand
- Oerlikon Leybold
- MPN
- Sogevac SV25 B
- SKU
- 186206
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return as listed. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Part no: 960251
Inlet connection: G 3/4" + G 1/2" inside thread
Technical specifications
| Pumping Speed | 14.7 CFM (415.4 l/m) |
| Ultimate Pressure | 0.38E0(En) torr (0.50E0 mbar) |
| Inlet Flange | NPT 19.1 mm (0.752 in) |
| Exhaust Flange | NPT 19.1 mm (0.752 in) |
| Single-Stage | YES |
| Gas Ballast | Yes |
| Ultimate Total Pressure with Gas Ballast | 0.60E0(En) torr (0.80E0 mbar) |
| Ultimate Total Pressure without Gas Ballast | 0.38E0(En) torr (0.50E0 mbar) |
| Direct Drive | Yes |
| Motor Horsepower | 1.5 HP |
| Rotational Speed | 4 RPM |
| Oil Type | Hydrocarbon |
| Oil Capacity | Maximum: 0.50 L (0.53 qt, 0.11 Br gal) |
| Year of Manufacture | 2014 |
| CE Marked | YES |
| Weight | 57 lb (26 kg) |
Exterior Dimensions
| Width | 9.094 in (23.1 cm) |
| Depth | 15.236 in (38.7 cm) |
| Height | 9.685 in (24.6 cm) |
Condition & testing notes
Unused inventory opened for inspection or photography.
