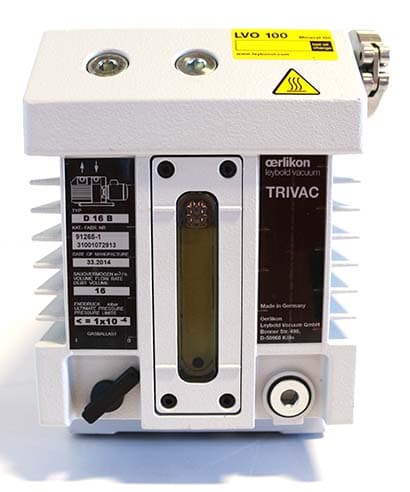

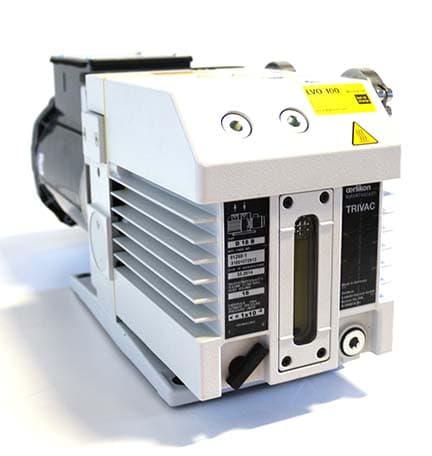

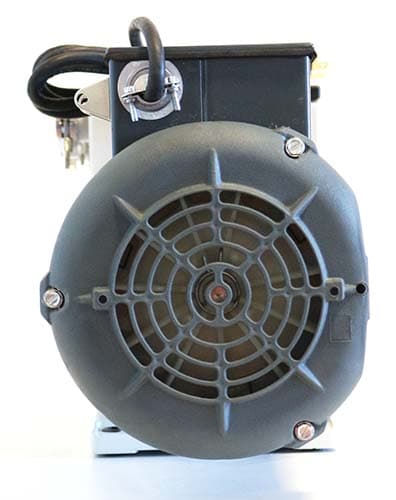

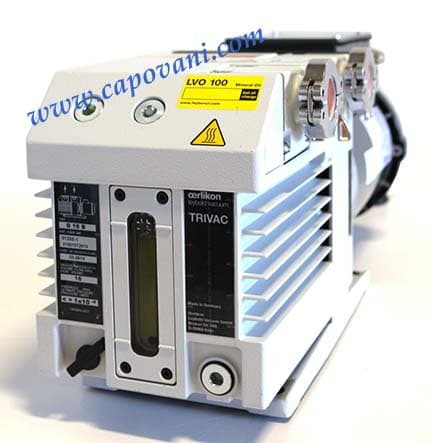

Oerlikon Leybold Trivac D16B Rotary Vane Pump
Quoted on requestWorking & warranted
- Condition
- Brand new See details
- Brand
- Oerlikon Leybold
- MPN
- D16B
- SKU
- 185921
- Availability
- 2 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Pumping Speed | 13.4 CFM (378.7 l/m) |
| Ultimate Pressure | 0.15E-2(En) torr (0.20E-2 mbar) |
| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Duty--Service | Corrosive |
| Two-Stage | YES |
| Gas Ballast | Yes |
| Direct Drive | Yes |
| Motor Horsepower | .75 HP |
| Rotational Speed | 1,725 RPM |
| Oil Type | Hydrocarbon |
| Oil Capacity | Minimum: 0.47 L (0.50 qt, 0.10 Br gal) Maximum: 1.04 L (1.10 qt, 0.23 Br gal) |
| Power Requirements | 115/ 230 V 50/60 Hz 1 Phase |
| Weight | 78 lb (35 kg) |
Exterior Dimensions
| Width | 9.250 in (23.5 cm) |
| Depth | 20.000 in (50.8 cm) |
| Height | 11.000 in (27.9 cm) |
Condition & testing notes
Never used inventory in brand new condition.
